- Supports Intel® Atom™ x7-E3950/x5-E3930 & Pentium® N4200 / Celeron® N3350 Series processors
- Over/Under/Reverse voltage protection
- Wide-range operating temperature from -40°C to 70°C
- 9~36V DC wide-range power input
- Rugged and fanless design
- DIN-rail mount & wall mount compatibility
Products
All Products
Fanless Systems

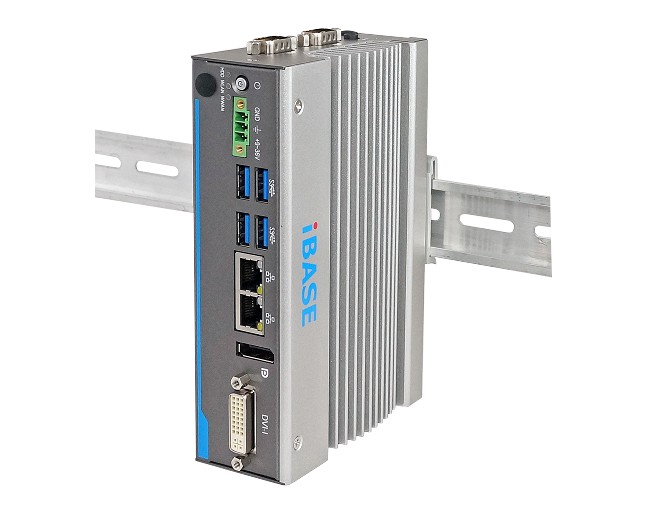

iBASE AGS100 Embedded Computer
The Intel® Apollo Lake-based AGS Series intelligent IoT gateway system designed for industrial control and factory automation applications can be used as an IoT gateway platform to connect devices and securely transfer data to clouds, or as a Machine-to-Machine (M2M) gateway, providing interconnection of wired or wireless devices to enhance workflow in various industrial environments.
The AGS100 can be powered by Intel® Atom™ processor E3950/E3930 with extended operating temperature (-40°C to 70°C), Intel® Pentium® N4200, and Celeron® N3350 processors (-20°C to 60°C). It supports 4GB DDR3L-1866 DO-DIMM, a 64GB MLC industrial-grade mSATA SSD, dual display ports (DVI-I and DisplayPort), 4x USB 3.0, 2x GbE, 2x COM, a DC-in terminal block for 9V~36V input and over/under/reverse voltage protection.
The model AGS102 has additional two RS232 ports for COM3/COM4 and GPIO 4-in & 4-out multi-purpose interface for a variety of one- or two-wired devices for I/O, security and data storage purposes.
For more information on this product and to talk to us about your custom solution, call us on 8363 0400, or send us an enquiry.
